River Crossing Deliverables

Sub-bottom sonar survey, shows depth of burial with pipe shown in red

Pipeline risks are compounded by the fact that a scour, degradation, and lateral
movement risk assessments are seldom performed at most crossings

Rendered Sonar Data

This image shows a bathymetric survey of a High Density Polyethylene Pipe river crossing. The sonar mainly shows the saddle weights and not the HDPE pipe itself.

Note: The pipe has been dragged downstream by the current and curved, putting a strain on joints and anchor points.

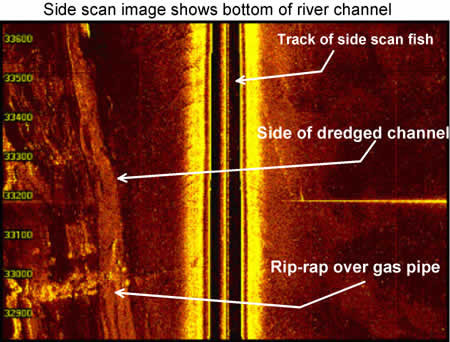

Side Scan Sonar Image

This image shows disturbed rip-rap pipe protection from a dredging operation.

Side scan sonar illustrates bottom conditions and can alert engineers to possible hazards to the pipe.

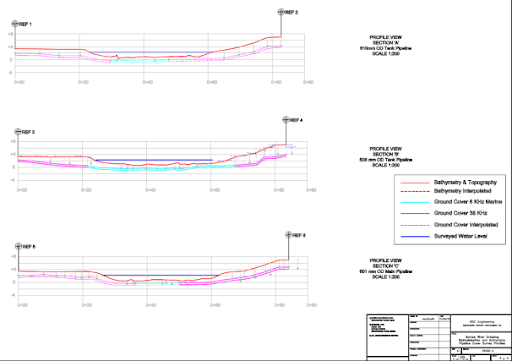

AutoCAD Drawing

The image shows the pipe elevation under a river. The depth of cover can also be seen.

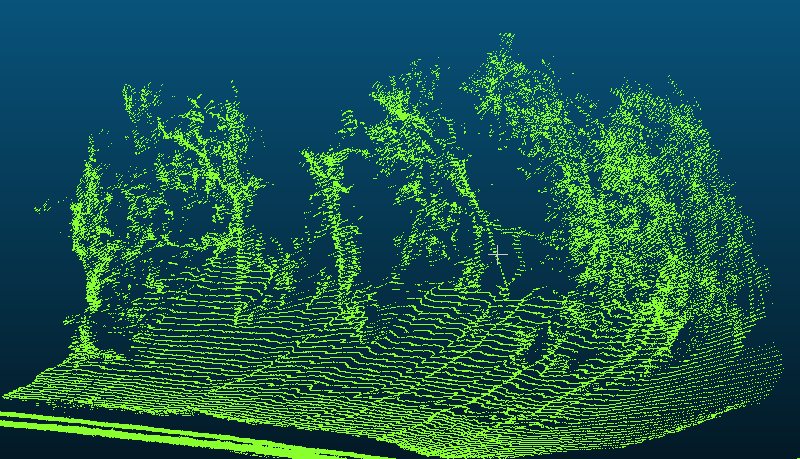

Shoreline Laser Scans

Combine underwater sonar with above water laser for a more complete picture.

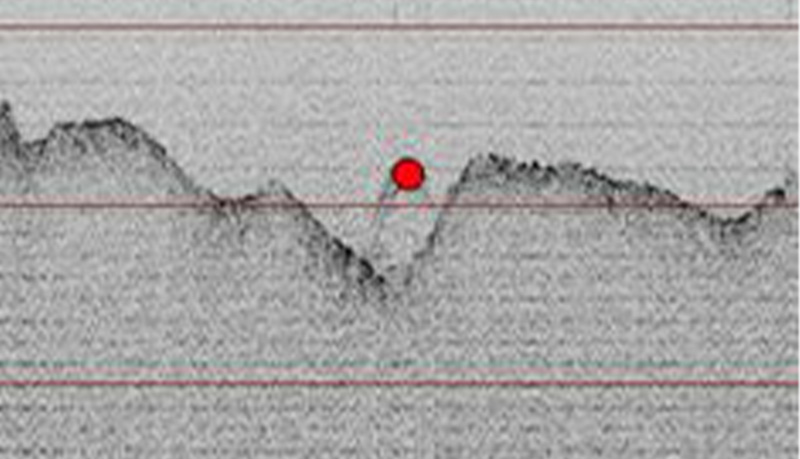

Sub-bottom Sonar Image

This image shows the gas pipe exposed and above the river bottom. Sub-bottom profiling gives depth of burial in most conditions.

Exposed pipelines are vulnerable to long-term issues such as abrasion and
corrosion and short-term issues such as direct attacks from hydraulic forces or
debris during high flows. These issues are critical to maintenance costs.
