Mine Survey Deliverables

Collect angle of repose data from under pile docks

Mine surveys provide valuable historical records that can be used for future reference. The data collected during a mine survey can be used to create detailed maps and records that document the  mine’s development over time. These records can be used to track changes in the mine’s structure and to identify potential areas of concern or improvement.

Request a Consultation

Mine survey deliverables

This image shows processed sonar data of a flooded 200 by 300 meter mine stope. Five different boreholes where used.

Survey 4 to 5 boreholes per day Tie multiple surveys together
2,500’ system tether lengths available Useful sonar range of 100 m Sound footprint, approx. 3% of range. We use Total Stations and RTK GPS units.

Request a Consultation

Mine Stope deliverables

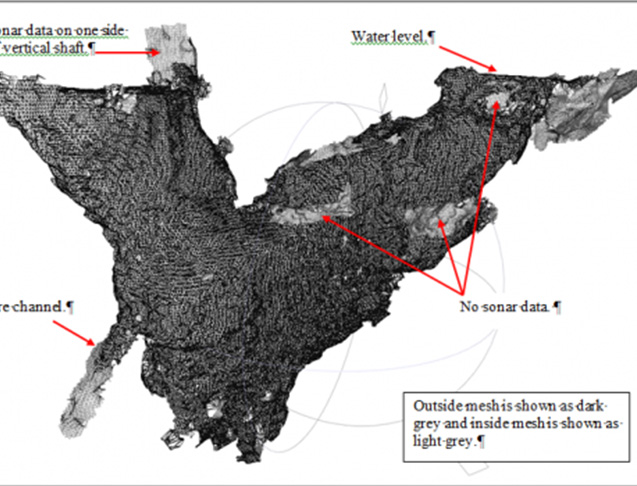

This images shows sonar data of a flooded 200 by 300 meter mine stope. Five different boreholes where used.to gather all data.
  • Flooded or dry
  • Survey 4 to 5 boreholes per day
  • Tie multiple surveys together
  • 2,500’ system tether lengths available
  • Useful sonar range of 100 m
  • Sound footprint, approx. 3% of range

Tailings pond deliverables

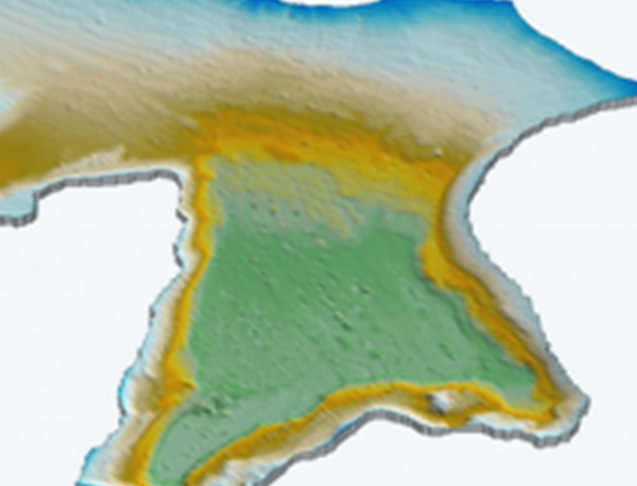

This image shows tailings pond bathymetry with the flooded  vegetation digitally removed.
  • Using RTK GPS technology for better than 2 cm elevation accuracy
  • Survey up dam faces
  • Survey up the shoreline to the water level• XYZ data and CAD drawings included in the report

Bore hole deliverables

This image is part of the deliverables for a borehole sonar survey, note the angled soft stratum.
  • Hardware and software was developed in house
  • Produces an underwater 3D point cloud (XYZ data)
  • Approximately 2 cm accuracy
