Large Diameter Pipe

Processed Laser Point Cloud Data of an Outfall

Note the crushed corrugated pipe at the end

COMBINING INSPECTION SENSORS, CAN HELP TO REDUCE REPAIR COSTS AND MINIMIZE DOWNTIME BY IDENTIFYING ISSUES MORE ACCURATELY AND QUICKLY. MUNICIPALITIES CAN MAKE REPAIRS MORE EFFICIENTLY AND WITH LESS DISRUPTION TO THE SEWER SYSTEM.

LARGE DIAMETER PIPE

  • Integrated multi-sensor data collection technology provides new and unrivalled definition of your Large Diameter Pipes

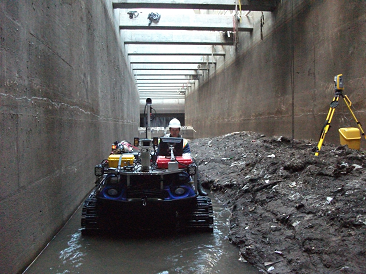

  • Our design team build innovative robotic systems to help position the sensors and solve challenging inspection and survey issues.
  • We collect video & x,y,z point cloud data above and below water using time of flight (ToF) laser and digital sonar
  • All our data and deliverables can be accessed or viewed with widely available software
  • High resolution digital marine cameras (1080p)
  • Time of Flight profiling lasers used to create above water AutoCAD drawings
  • Time of Flight 3D lasers create CAD ready data around a fixed point
  • Digital profiling sonars create CAD ready data below water
  • 3D sonar system
  • Digital scanning sonars image underwater trends
  • MH to MH gas and temperature sensors
  • RTK GPS for terrestrial surveys with 2 cm – ¾” accuracy
  • Additional sensors are easily incorporated

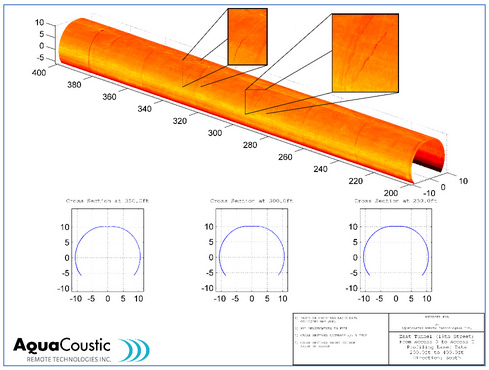

LiDAR data in a 21’ storm drain. With our system, cracks in the concrete wall can be seen.

  • Time of Flight Laser (LiDAR)
  • Eye safe
  • Scanning speed 15Hz
  • Range 50cm to 25m
  • Accuracy 10 mm
  • Records return intensity allowing the dark cracks to be seen clearly.
  • Creates dense point cloud data for CAD programs

MARINE CAMERA 10 X OPTICAL ZOOM

  • Making your life easier with clear images
  • Natural feel pan and tilt camera
  • 10X optical zoom and auto focus
  • Low light to 0.05 lux
  • High-resolution frame grabs
  • Natural light LEDs for natural color
  • We eliminate coding errors by coding in the office not in the field.

DIGITAL PIPE PROFILING SONAR

  • If you have any questions about sonar, we have the knowledge to help you.
  • Pipe cross-sections showing pipe restriction, cross-sectional restrictions & debris volume.
  • Manhole to manhole graphs showing water level & debris as a cross- sectional percentage.
  • Tabulated sonar data tables of cross-section restriction, debris volumes, storage capacity & water level.
  • Ovality tables and graphs.
  • 3D models are built by using payout, sonar data and attitude sensors including accelerometer information.
  • The processed data is quality controlled by trained personnel
